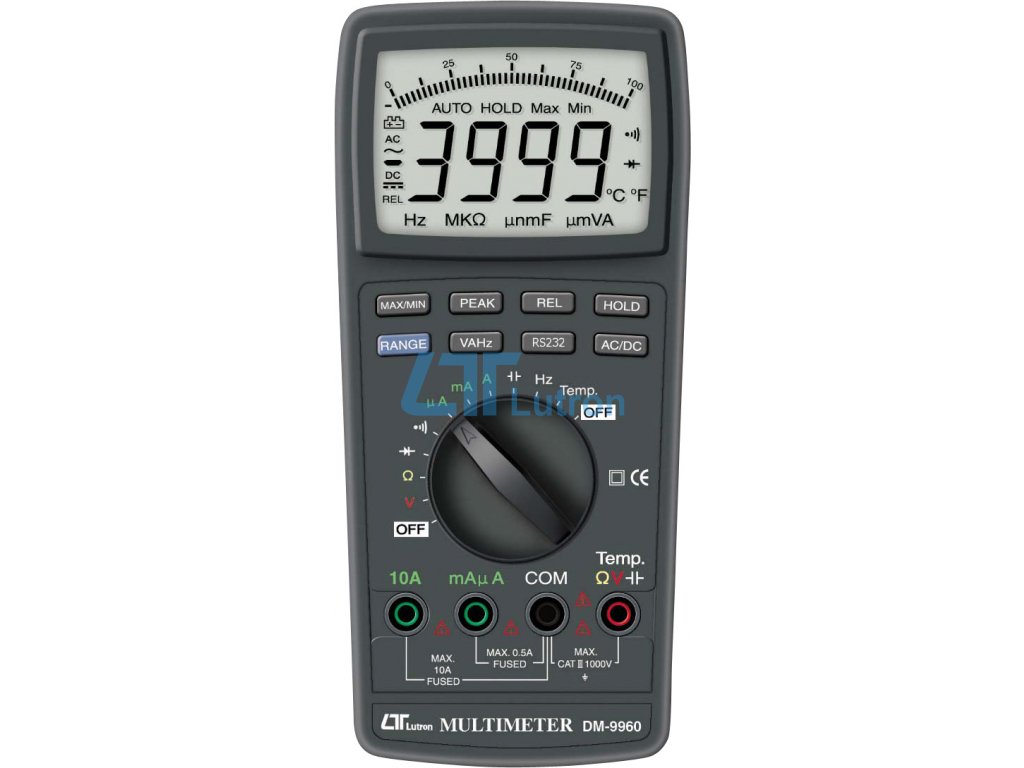

Multimeter LUTRON DM-9960

Product detailed description

Lutron DM-9960 is digital multimeter . Measures voltage(AC/DC) up to 1000V, current(AC/DC) up to 10A, rezistance up to 40MΩ, frequency 40MHz, capacity 40mF, temperature -20°C - 750°C.
LCD display with 4000 counts with bargraph.
Diode test, continuity test.
Automatic and manual ranging, relative measurments.
Min, Max, Data hold.
RS232 port - connect to PC(with UPCB-06 cable).
CAT II 1000V.

Ranges/resolution:
UAC/DC: 400 mV/0,1 mV; 4 V/1 mV; 40 V/10 mV;
400 V/100 mV; 1000 V/1 V
IAC/DC: 400 µA/0,1 µA; 4000 µA/1 µA; 40 mA/0,01 mA;
400 mA/0,1 mA; 10 A/10 mA
R: 400 Ω/0,1 Ω; 4 kΩ/1 Ω; 40 kΩ/10 Ω; 400 kΩ/100 Ω;
4 MΩ/1 kΩ; 40 MΩ/10 kΩ
C: 4 nF/1 pF; 40 nF/10 pF; 400 nF/0,1 nF; 4 µF/1 nF;
40 µF/10 nF; 400 µF/0,1 µF; 4 mF/1 µF; 40 mF/10 µF
f: 4 kHz/1 Hz; 40 kHz/10 Hz; 400 kHz/1 kHz; 4 MHz/0,01 MHz; 40 MHz/0,1 MHz
T: -20 - 750 °C/1 °C

Other parameters:

Power: 2x AAA 1,5 V battery
Dimensions: 88 x 185 x 40 mm
Weight: 350 g

Documents:

• Datasheet
