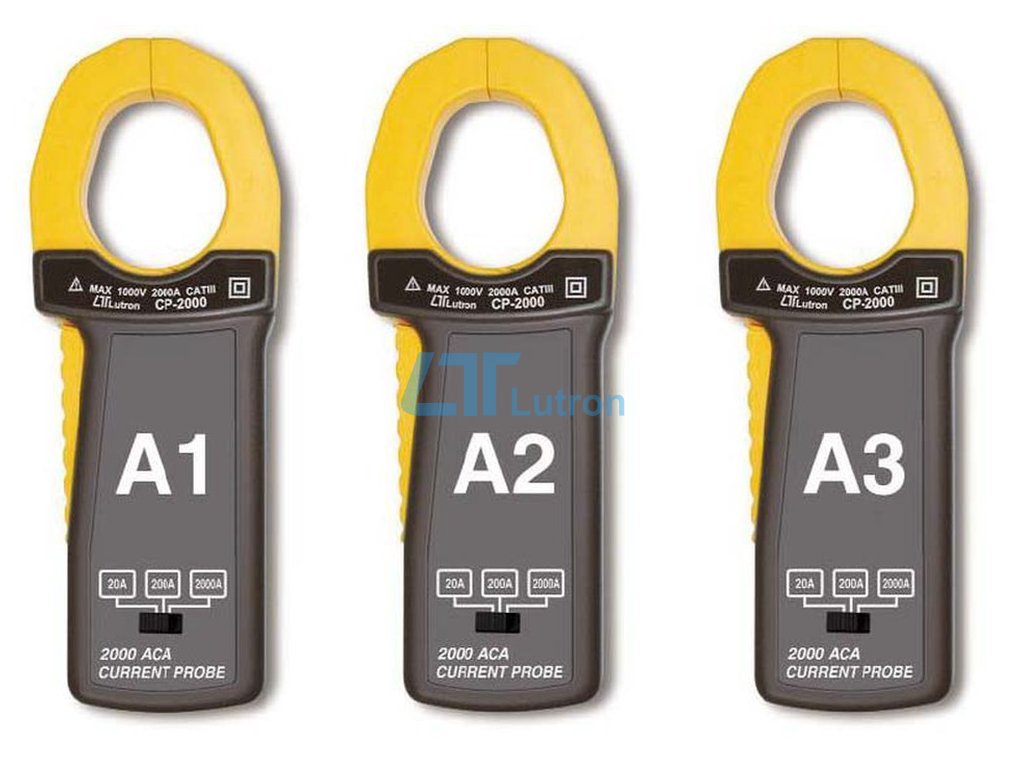

Clamp set CP-2000 for DW-6095

Product detailed description

CP-2000 – 2000A AC Current Probe with 3 Selectable Ranges

The CP-2000 is a professional-grade current probe designed for high-current AC measurements in industrial, field, or laboratory settings. Offering three switchable ranges (20 A, 200 A, and 2000 A), it provides excellent flexibility with high output sensitivity and a large 51 mm jaw opening. The probe is compatible with DW-6093 and DW-6095 measuring instruments and does not require an internal power source, making it a robust, maintenance-free solution.

Main Features:

• Selectable Ranges: 20 A / 200 A / 2000 A
• Output Sensitivity: 100 mV/A (20 A), 10 mV/A (200 A), 1 mV/A (2000 A)
• Output Voltage: Up to 2 V AC (depending on range)
• Minimum Load: 100 kΩ for rated accuracy
• Jaw Opening: Max. 51 mm (2.1 inch) diameter
• Operation Frequency: 50/60 Hz
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Frequency Range: 45 Hz to 400 Hz
• Phase Error: Less than ±1° at 50/60 Hz
• Accuracy: ±1% Full Scale
• No calibration required when replacing the probe
• Banana Plug Output: Durable 4-meter cable (13.17 feet)
• Battery-Free: Powered directly from compatible meters (DC 8V ±1V)
• Enclosure Material: UL 94-V0 flame-retardant rated
• Safety Rating: IEC 1010, CAT III 600V
• Dimensions: 240.8 × 90.9 × 38.3 mm (9.48 × 3.58 × 1.5 inch)
• Weight: 586 g (1.29 lb)
• Cable Length: 4 meters
• DC Plug Size: 5.5 mm x 2.5 mm

Package Contents:

• CP-2000 Current Probe
• Operating Manual – 1 PC

Compatibility:

• Optional probe for DW-6093 and DW-6095 measuring instruments

Note: Specifications may change without prior notice. Electrometer not included.
