stroboscope LUTRON DT-2349

Product detailed description

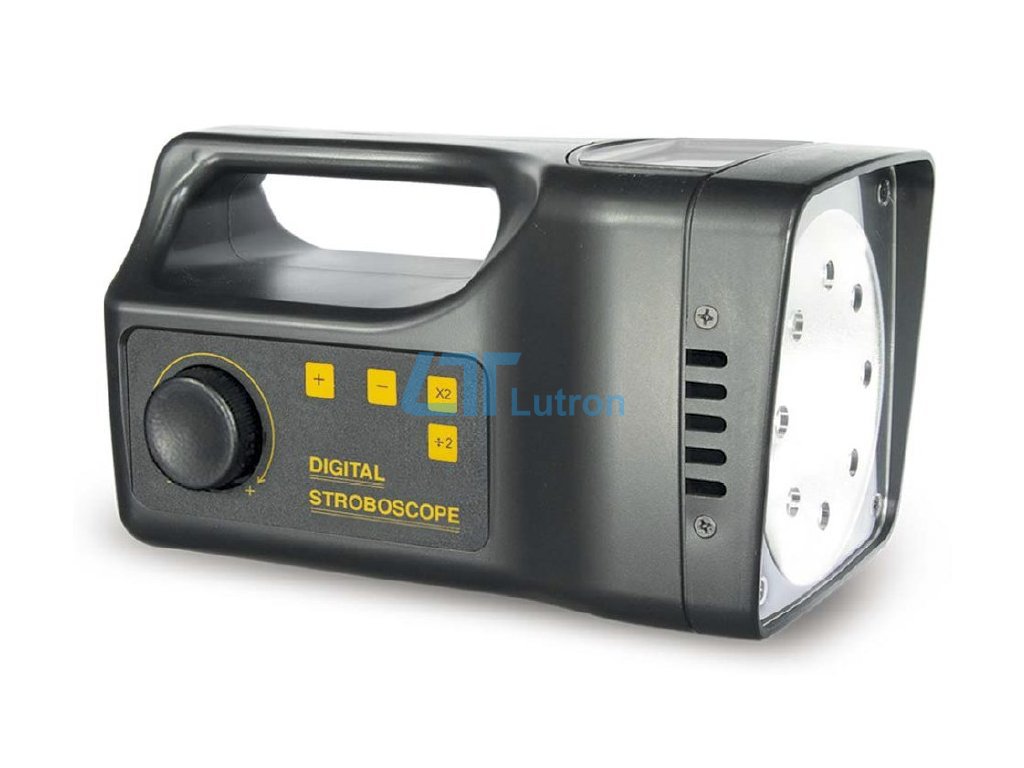

DT-2349 Digital Stroboscope

The DT-2349 digital stroboscope is a precision instrument designed for non-contact inspection and speed measurement of rapidly moving machinery parts. With its microprocessor-based design and crystal-controlled time base, it ensures high accuracy and stable performance in demanding environments.

This stroboscope utilizes a powerful xenon flash tube that delivers intense white light flashes, making moving components appear stationary for accurate visual inspection. The device supports a wide frequency range of 60 to 32,000 RPM/FPM and features intuitive digital control buttons for quick settings and fine adjustments.

Key Features:

• Measurement range: 60 – 32,000 RPM/FPM
• Accuracy: ±0.05% + 1 digit
• Resolution: 0.1 RPM (< 1000 RPM), 1 RPM (≥ 1000 RPM)
• Display: 5-digit LCD display (0–99,999)
• Digital buttons: ×2, ÷2, +, -
• High-intensity xenon flash tube (6,500 K color temperature)
• Flash energy: 4 joules
• Flash duration: 5–12 µs
• Beam angle: 80°
• High stability via digital synthesis signal adjustment
• Quick and easy tube replacement via socket design

Power Supply:

• AC 100V to 240V via DC 9V / 3A adapter (included)
• Supports optional 1.2V Ni-MH D-size (UM-1) rechargeable batteries × 4 (not included)
• Power consumption: DC 2.4A (at 3600 FPM)

Operating Conditions:

• Temperature: 0 to 50°C (32 to 122°F)
• Humidity: Less than 80% RH
• Compact housing: 21 × 12 × 12 cm (8.3 × 4.8 × 4.8 inches)
• Weight: 1 kg (2.2 lb)

Recommended Duty Cycle:

• Below 2000 RPM: Up to 2 hours
• 2001–3600 RPM: Up to 1 hour
• 3601–8000 RPM: Up to 30 minutes
• Above 8000 RPM: Max 10 minutes
• Allow a 10-minute cooling period between cycles for extended lifespan.

Applications:

• Industrial equipment maintenance
• Production line inspection
• R&D and laboratory testing
• Teaching and demonstration purposes

Included Accessories:

• DT-2349 Digital Stroboscope
• AC to DC 9V power adapter
• User manual

Optional Accessory:

• Xenon flash tube (Model: TBXE-2289)
