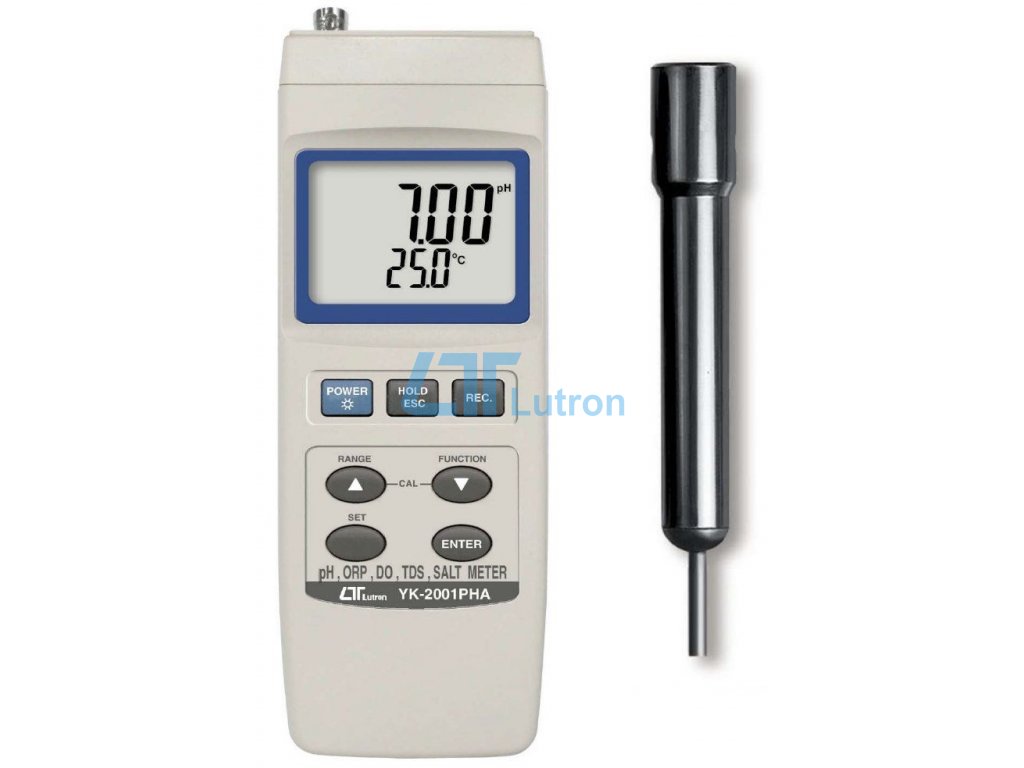

pH / ORP / DO / Conductivity / Salt meter LUTRON YK-2001PHA
Product detailed description
YK-2001PHA – Multi-Function Meter for pH, ORP, DO, Conductivity / TDS, and Salt Percentage
The YK-2001PHA is a versatile instrument combining multiple measurements in one device: pH / ORP, dissolved oxygen (DO), conductivity / total dissolved solids (CD/TDS), and salt content. Equipped with automatic temperature compensation (ATC), various probe options, and data output via RS232/USB. Suitable for water quality control, laboratories, aquaculture, food processing, environmental monitoring, and industrial use.
Main Features:
- Measures pH (0.00–14.00) and ORP (±1999 mV)
- Conductivity / TDS / Salt: wide ranges from µS to mS, and salt % by weight
- Dissolved Oxygen (DO) measurement with polarographic probe
- Automatic Temperature Compensation (0–60 °C), or manual mode
- Large backlit LCD display for clear readability
- Data hold, records Max / Min values
- Probe flexibility: interchangeable probes for different functions (pH, ORP, DO, etc.)
- RS232 / USB PC interface
- Auto-power off or manual power control
Technical Specifications:
| Parameter | Range | Resolution | Accuracy |
|---|---|---|---|
| pH | 0.00 to 14.00 pH | 0.01 pH | ±(0.02 pH + 2 digits) |
| ORP | ±1999 mV | 1 mV | ±(0.5% + 2 digits) |
| Conductivity (various) | 200 µS – 200 mS | ranges from 0.001 to 0.1 mS as per range | ±(2% FS + 1 digit) |
| Dissolved Oxygen (DO) | 0.0 – 20.0 mg/L | 0.1 mg/L | ±(2% FS + 1 digit) |
| Salt | 0.00 – 12.00 % by weight | 0.01 % | ±0.5% (varies by measurement conditions) |
General Specifications:
- Operating temperature: 0–60 °C (32–140 °F)
- Automatic or manual temperature compensation (ATC)
- Display: large LCD with green backlight
- Power: 9V battery (006P) or DC 9V adapter
- Weight: approx. 489 g (1.08 lb)
- Dimensions: 177 × 68 × 45 mm (7.0 × 2.7 × 1.9 in)
Included Accessories:
- User manual
- Conductivity / TDS / Salt probe (CDPB‑03)
Optional Accessories:
- pH electrodes (PE‑03, PE‑11, PE‑01, PE06HD, PE‑04HD, PE‑03K7)
- Oxygen probe (OXPB‑11), heavy duty DO probe heads
- Salinity probes
- Probe for temperature compensation (TP‑07)
- Buffer solutions (pH‑04, pH‑07)
- Carrying case (CA‑06)
- RS232 cable (UPCB‑02), USB cable (USB‑01)
- Software for data acquisition and logging (SW‑U801‑WIN, SW‑E802)
Note: Accuracy values are based on tests at 23 ± 5 °C. Other accessories than CDPB‑03 and user manual are not included in the standard package.
Additional parameters
| Category: | pH/REDOX-ORP meters |
|---|---|
| Weight: | 1 kg |
