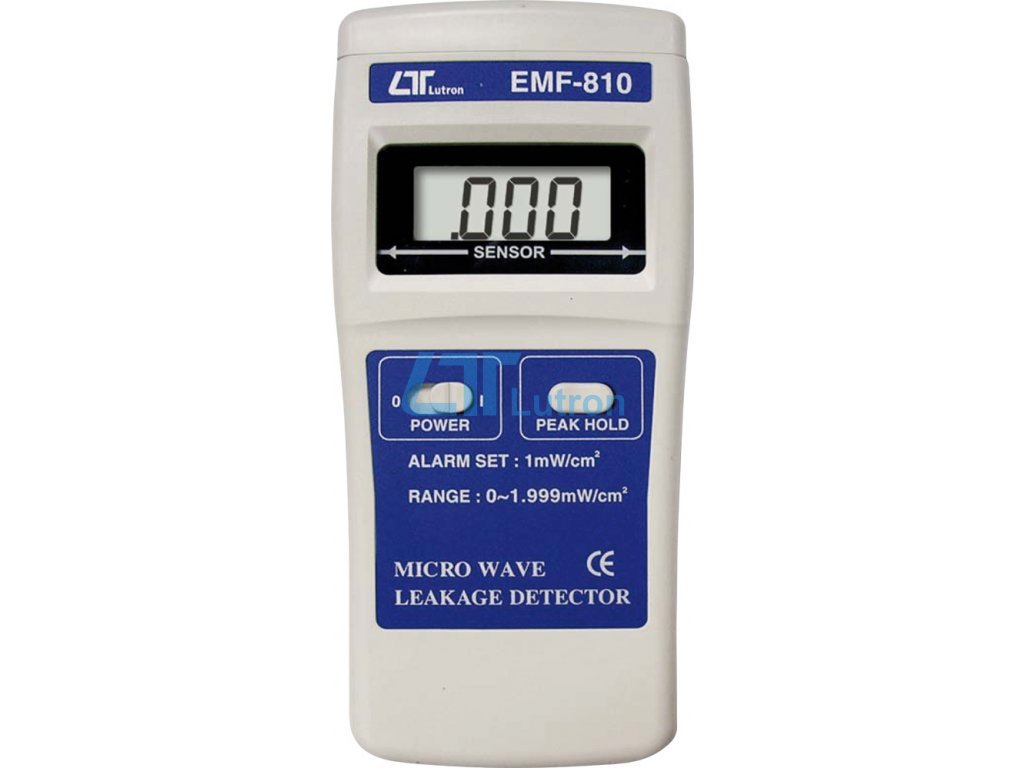

Microwave leakage detector LUTRON EMF-810

Product detailed description

EMF-810 – Microwave Electromagnetic Field (EMF) Meter, 2.45 GHz

The EMF-810 is a specialized electromagnetic field meter designed to precisely measure EMF values in the microwave frequency range around 2.45 GHz. It is especially useful for detecting microwave oven leakage and monitoring electromagnetic radiation in various industrial, laboratory, and medical environments.

Key Features:

• Optimized for 2.45 GHz ± 50 MHz – ideal for microwave oven leakage detection
• Real-time measurement of microwave EMF levels in mW/cm²
• Built-in buzzer alarm triggers when value exceeds 1 mW/cm²
• Peak Hold function to capture maximum measured value
• Wide detection range: 30 MHz – 3 GHz (for reference outside 2.45 GHz)
• Easy-to-read LCD display with large digits (12 × 6 mm)
• Lightweight and portable – ideal for on-site measurements
• Battery or DC adapter operation (9V battery or optional DC 9V adapter)

Applications:

• Microwave oven leakage detection
• Monitoring EMF in hospitals and medical equipment
• Radar and RF communication installations
• Factory and laboratory EMF safety evaluations
• Welding, baking equipment, radio/TV antennas, etc.

Technical Specifications:

• Measurement Range: 0.000 to 1.999 mW/cm²
• Unit: mW/cm²
• Frequency Calibration: 2.45 GHz ± 50 MHz
• Accuracy: Verified under 2.45 GHz ± 50 MHz at 0.1 mW/cm²
• Frequency Response: 30 MHz – 3 GHz (reference only outside 2.45 GHz)
• Alarm Threshold: 1.0 mW/cm² (buzzer activates)
• Display: LCD 40 × 25 mm, digits 12 × 6 mm
• Sensor space length: 50 mm
• Overload Indication: "OL" on display
• Power Consumption: Approx. DC 1.86 mA

Power Supply:

• 1 × 9V battery (006P type)
• Optional: 9V DC adapter

Physical:

• Dimensions: 152 × 69 × 36.3 mm (6.0 × 2.7 × 1.4 inches)
• Weight: 202 g (0.445 lb)

Included Accessories:

• User manual – 1 pc

Optional Accessories:

• Soft carrying case – CA-52A
