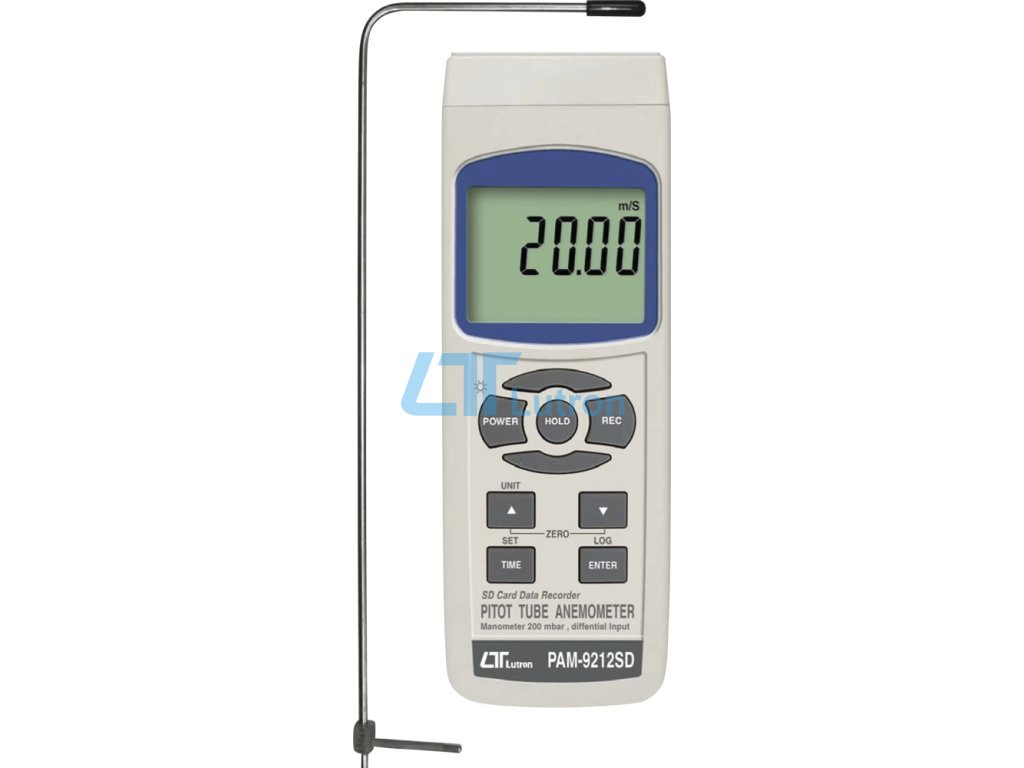

Anemometer LUTRON PAM-9212SD with Pitot Tube
Product detailed description
LUTRON PAM-9212SD – High-Precision Pitot Tube Anemometer and Differential Manometer with SD Card Datalogging
The LUTRON PAM-9212SD is a professional-grade anemometer and differential manometer with built-in Pitot tube, designed for accurate air velocity and pressure measurements in industrial, HVAC, medical, and laboratory environments.
Key Features:
- Dual & Differential Input – Measures up to ±200 mbar
- Air Velocity Units: m/s, km/h, ft/min, mph, knots
- Pressure Units: mbar, kg/cm², mm Hg, meter H₂O, atm, psi, inch Hg, inch H₂O, hPa, kPa
- Real-Time Datalogging to SD card (1 GB–16 GB), Excel-compatible format
- Built-in Sensor and piezoelectric measurement for non-corrosive, non-ionized gases
- Large LCD (51 × 37 mm) with adjustable green backlight
- Microprocessor Circuit for high accuracy, fast response
- Zero Offset button on front panel
- Auto/Manual Power Off and Auto Data Hold
- Max/Min Memory and timestamp logging (Y/M/D + h/m/s)
- RS232 & USB Interface for PC connectivity
Technical Specifications:
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| Air Velocity | 4.1 – 100.0 m/s | 0.1 m/s | ±(3% + a) |
| 14.7 – 360.0 km/h | 0.1 km/h | ±(1% + a) | |
| 9.1 – 223.7 mph | 0.1 mph | ||
| 7.9 – 194.3 knots | 0.1 knot | ||
| 81 – 19685 ft/min | 1 ft/min | ||
| @ a = 0.1 m/s; 0.3 km/h; 0.2 mph; 0.2 knot; 20 ft/min | |||
| Pressure (mbar) | ±200 | 1 mbar | ±2% F.S. |
| psi | ±2.9 | 0.01 psi | |
| kg/cm² | ±0.204 | 0.001 kg/cm² | |
| mm Hg | ±150 | 1 mm Hg | |
| inch Hg | ±5.905 | 0.02 in Hg | |
| meter H₂O | ±2.040 | 0.01 m H₂O | |
| hPa | ±200 | 1 hPa | |
| kPa | ±20 | 0.1 kPa | |
| inch H₂O | ±80.2 | 0.05 in H₂O | |
| atm | ±0.197 | 0.001 atm | |
Data Logging:
- Sampling Interval: 1 sec to 8 hours 59 min 59 sec
- Manual or automatic logging
- Data includes timestamp: Year / Month / Day, Hour / Minute / Second
- Export to Excel directly from SD card
Display & Interface:
- Large LCD with green backlight (ON/OFF)
- Data hold, MAX/MIN recall, zeroing, and relative mode
- RS232 and USB output (optional cables required)
Power & Consumption:
- 6 × 1.5V AA batteries (UM3) or optional 9V DC adapter
- Current consumption: ~7 mA (normal), ~25 mA (with SD logging), +10 mA (with backlight)
Physical:
- Dimensions: 190 × 68 × 45 mm (7.5 × 2.7 × 1.8 in)
- Weight: 265 g (0.59 lb)
Included Accessories:
- Instruction manual
- Pitot tube (Model 018)
- 2 × quick connectors
- 2 × silicone tubes (50 cm each)
Optional Accessories:
- 4 GB SD memory card
- AC to DC 9V adapter
- USB cable (USB-01)
- RS232 cable (UPCB-02)
- Data acquisition software (SW-U801-WIN)
