Data acquisition software LUTRON U801 WIN- E816

Product detailed description

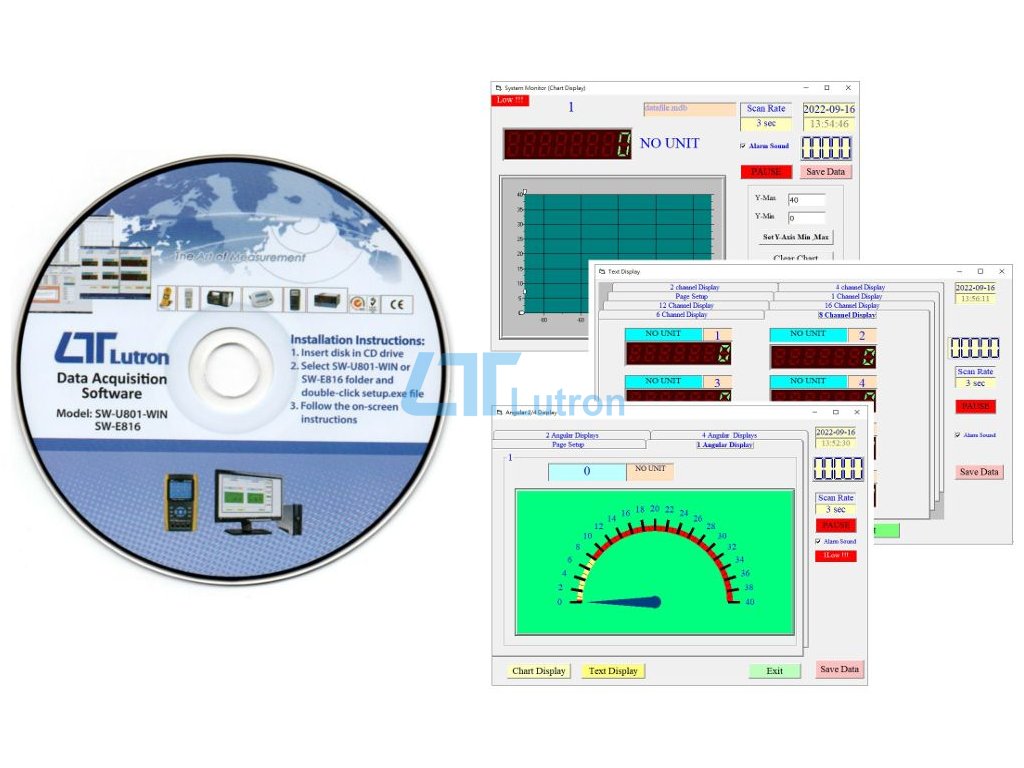

The SW-E816 software for current (real) display of measured values for up to 16 LUTRON channel devices in the Microsoft Office Excel application. This makes it easier to share, analyze and manage measurement results. Microsoft Office Excel installed on a PC is required (. *Compatible with Microsoft OS Windows 98, Windows XP, Windows Vista, Windows 7, 8, 10 and 11. Manual data recording with real-time information (year/date/min/s). Automatic data recording with a real-time data collection system. Time data can be recorded as year/date/min/s. *Data sampling time: 1 to 3600 seconds. *The data can be used in Excel with its general functions, such as drawing a data graph.

The LUTRON U801 WIN- E816 data acquisition software is not designed for data stored on a data logger memory card. The .csv file stored by the logger must be exported to a spreadsheet program by inserting the memory card directly into a memory card reader. This spreadsheet program can be, for example, Microsoft Office Excel or Libre Office, where the measured data can be further processed by the user. USB-01 and UPCB data cables are not used to transfer data stored on the memory card by the data logger. Data cables are only used for online connections between devices and computers.

Documents:

• Datasheet
