stroboscope LUTRON DT-2249A
DT-2249A Digital Stroboscope with high accuracy and wide range from 60 to 30,000 RPM. Ideal for inspecting moving parts in manufacturing, maintenance, and education. Features a high-intensity xenon flash tube, LED display, and easy digital controls.
Product detailed description

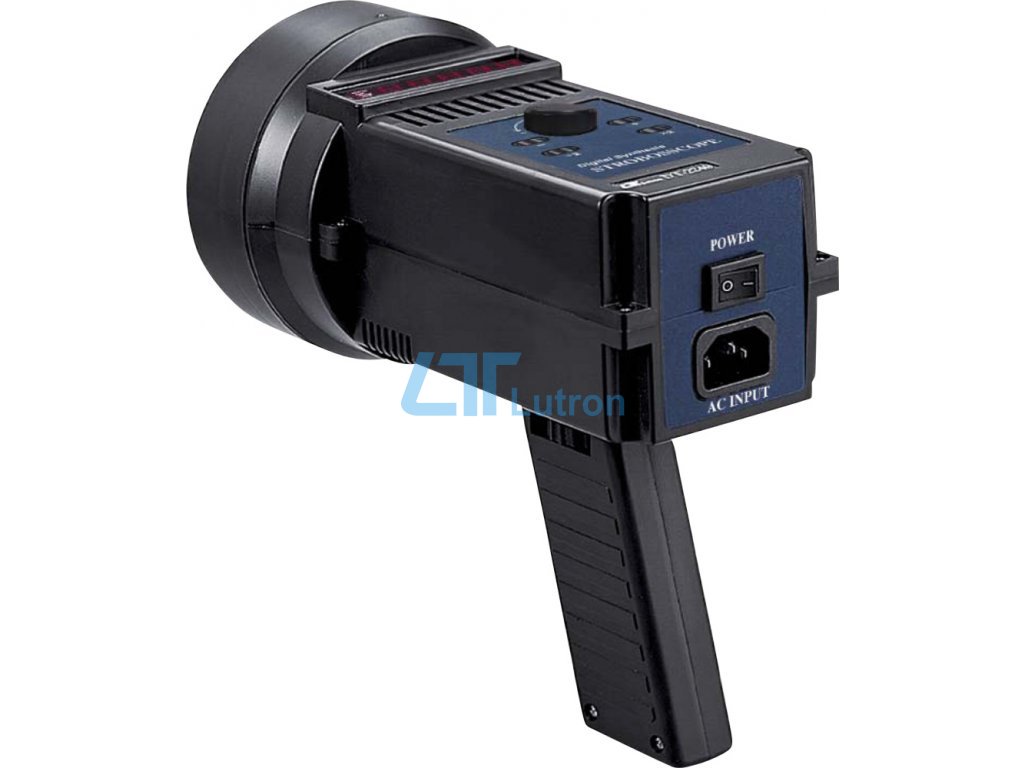

DT-2249A Digital Stroboscope
The DT-2249A is a professional-grade digital stroboscope designed for precise, non-contact measurement and observation of fast-moving objects such as gears, fans, pumps, and motors. It uses a microprocessor-controlled circuit with a crystal time base to ensure high measurement stability and accuracy.
This model is equipped with a xenon flash tube that produces high-intensity, white flashes (6500K), making it easy to visually freeze and examine rotating or vibrating components. Its digital LED display with 5 digits allows for clear and easy reading, and the intuitive control buttons make adjustments fast and simple.
Key Features:
- Measurement range: 60 – 30,000 RPM/FPM
- Accuracy: ±0.05% + 1 digit
- Resolution: 0.1 RPM (< 1000 RPM), 1 RPM (≥ 1000 RPM)

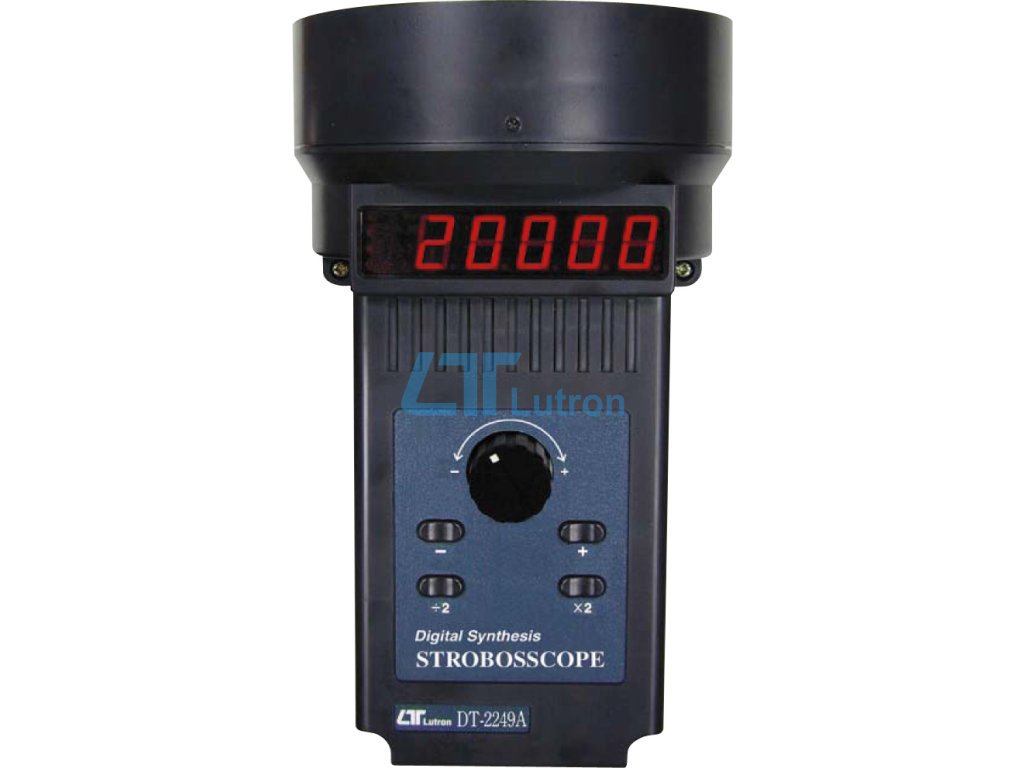

- Display: 14 mm (0.56") red LED, 5 digits
- Flash source: Xenon lamp with 4 Joules energy per flash
- Flash color temperature: 6500 K (Xenon white)
- Digital control buttons: Multiply ×2, Divide ÷2, +, -
- High intensity, adjustable light output
- Compact and impact-resistant plastic housing
- Power supply: 110–230V AC ±10%, 50/60 Hz
- Power consumption: Less than 30W
- Operating temperature: 0 – 50°C (32 – 122°F)
- Humidity: < 80% RH
- Weight: 1 kg (2.2 lb)
- Dimensions: 21 × 12 × 12 cm (8.3 × 4.8 × 4.8 in)
Typical Applications:
- Industrial maintenance
- Production monitoring
- Quality control
- Laboratory testing
- Educational demonstrations
Included Accessories:
- DT-2249A Digital Stroboscope
- Power cable
- Operation manual
Flash Tube Specification:
- Flash duration: 60 – 1000 µs
- Beam angle: 80°
- Replaceable Xenon flash tube with socket
- Flash tube replacement recommended if irregular flashing occurs above 3600 RPM
Operating Duty Cycle:
- Up to 2000 RPM: 2 hours
- 2001–3600 RPM: 1 hour
- 3601–8000 RPM: 30 minutes
- Above 8000 RPM: 10 minutes
- Allow 10 minutes cooling between cycles for longer lifespan.
Note: Specifications and appearance may change without prior notice.
