conductivity probe LUTRON CDPB-03

Product detailed description

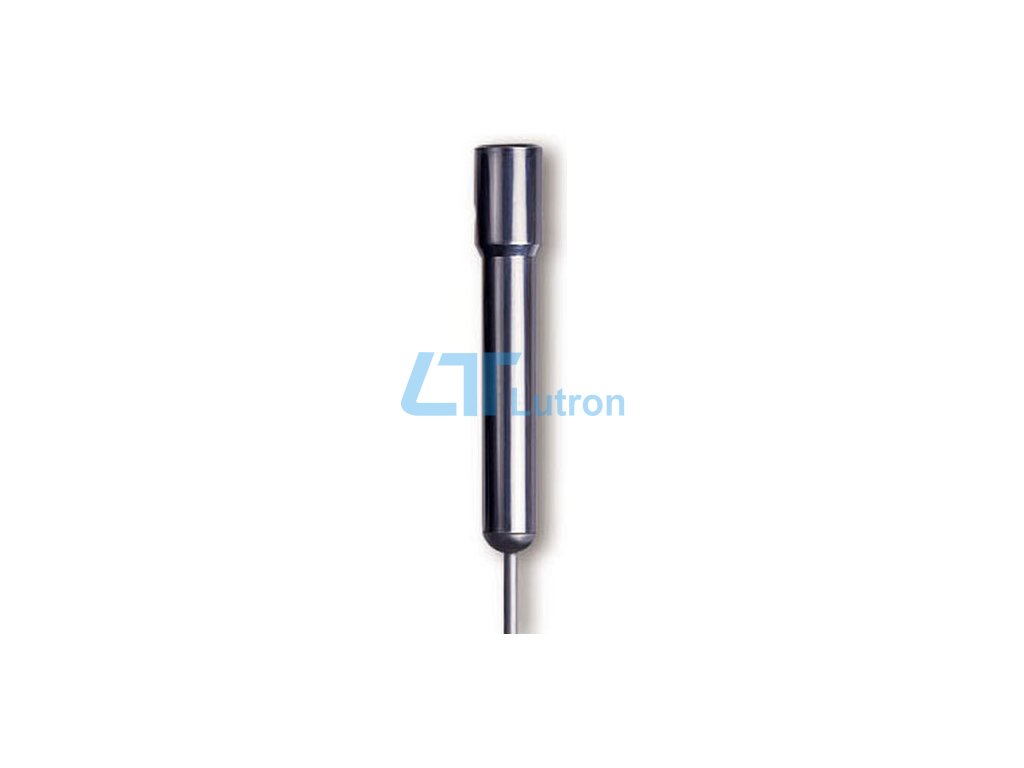

The LUTRON CDPB-03 is a two-pole carbon rod electrode for measuring the conductivity of liquids, including the measurement of TDS and salinity of solutions.
The probe is for general use with a long service life.
Designed for meter types: YK-2005W.
Also an alternative to the CDPB-04 probe supplied with the WAC-2019SD.
Measurement range: 2 mS / 20 mS / 200 mS
Electrode constant: approx. K = 1
Temperature measurement NTC 10 KΩ.
Dimension diameter / length: 22 mm x 128.5 mm.

Documents:

• Datasheet
