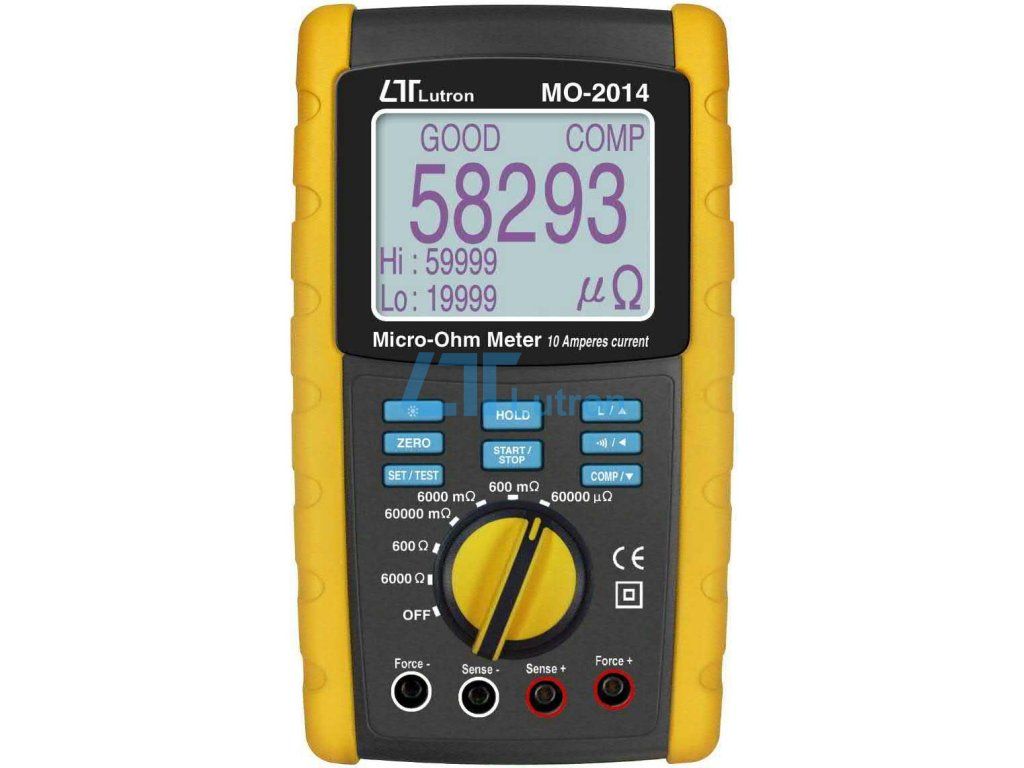

Micro-ohmmeter LUTRON MO-2014

Product detailed description

Lutron MO‑2014 – Digital Micro‑Ohmmeter (10 A) High‑precision micro‑ohmmeter for measuring extremely low resistance using the 4‑wire Kelvin method. Designed for testing protective conductors, lightning conductors, welded joints, switches, relays, coils and other components requiring accurate low‑ohm measurement. Offers a maximum test current of 10 A, wide measuring range from 5 µΩ to 6 kΩ, and a large backlit display for easy reading.

Key Features

• 4‑terminal Kelvin measurement for high accuracy at very low resistance
• Maximum test current 10 A (60 mΩ range)
• Wide measuring range: 5 µΩ – 6 kΩ, 6 ranges
• Resistive and Inductive measurement modes
• Good/Fail comparator with buzzer for QC
• Special CALCULATE function for cable/wire length measurement
• Large back‑light LCM display
• Over‑input protection and durable bench‑type housing
• Powered by 8× AA batteries or 9 V AC/DC adapter
• Includes Kelvin clips, adapter and carrying case

Documents:

• Datasheet
