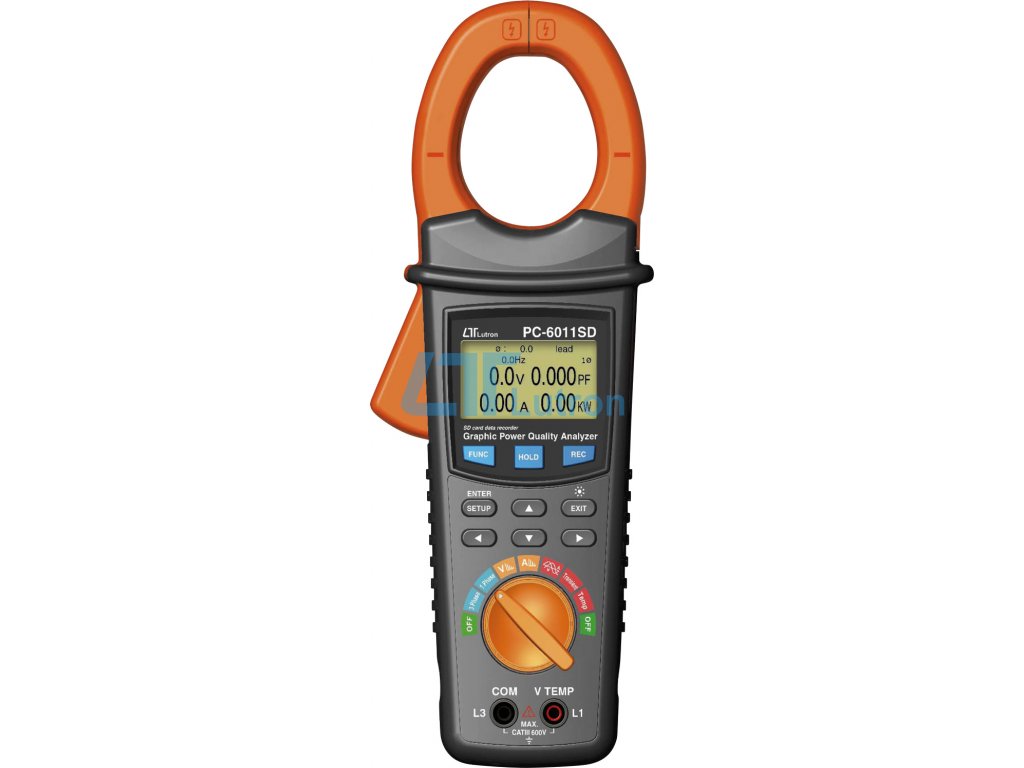

Clamp power analyzer LUTRON PC-6011SD

Product detailed description

LUTRON PC-6011SD is a Clamp Power Analyzer with SD card real time data recorder.

Measurements:
V, A, kW, kVA, kVAR, PF, kWh, kVAh, kVARh, PFH, Power factor, Phase angle, Frequency, Harmonics display, Temperature.

Features:
(UAC: 10 V ~ 600 V; IAC: 5 A ~ 2000 A)
Clamp can accommodate up to 2.2" (57 mm) diameter
Power quality analyzer for single-phase or balanced three-phasesystem.
Voltage and Current are the True RMS value.

Accessories included:
Instruction manual
8 GB micro SD card
Test Leads
Alligator clips
AC to DC 9V adapter ( linear 110V/220V )
Carrying case

Options:
thermocouple TP-11
USB cable
RS-232 kabel
software SW-U811-WIN

Documents:

• Datasheet
