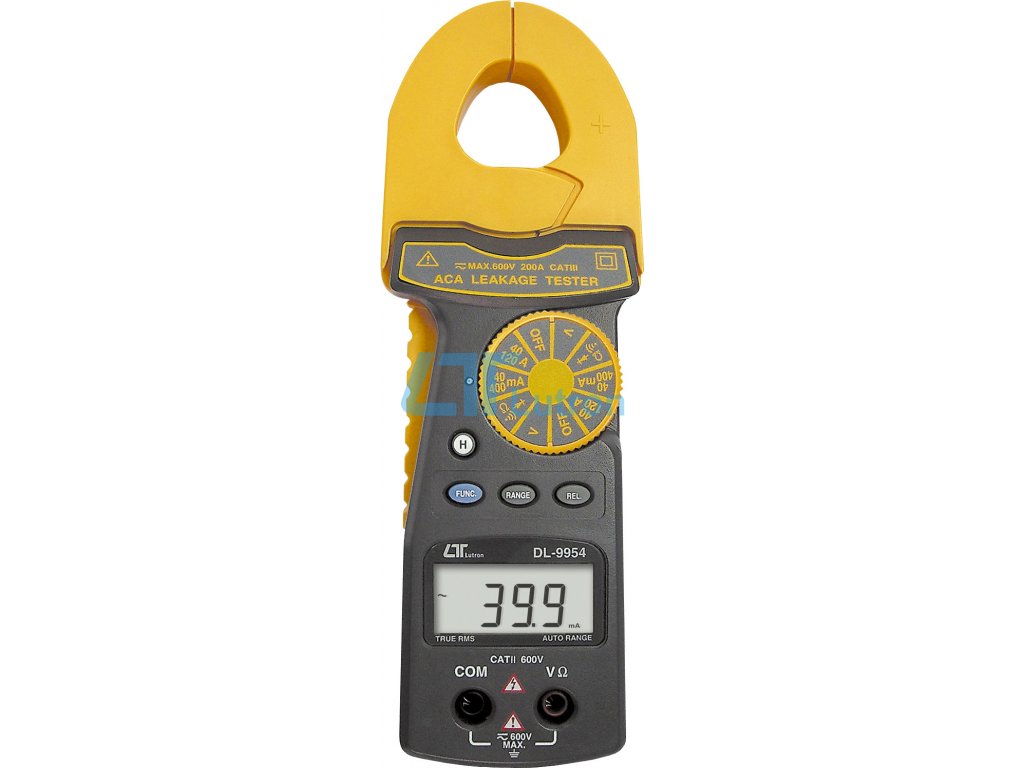

Clamp multimeter LUTRON DL-9954

Product detailed description

Lutron DL-9954 is a highly accurate leakage current meter. DL 9954 measures AC / DC voltage, AC current and resistance. Offers True RMS, diode test, continuity acoustic signal, automatic range switching, Data Hold and overload protection circuit.

Ranges / resolution:
UAC / DC: 0.4 V; 4 V; 400 V; 600 V
IAC: 40 mA; 400 mA; 40 A; 120 A
R: 400 Ω; 4 kΩ; 40 kΩ; 400 kΩ; 4 MΩ; 40 MΩ

Other parameters:
Power supply: 2x 1.5 V battery
Dimensions: 191 x 64.5 x 36.1 mm
Weight: 230 g

Documents:

• Datasheet
