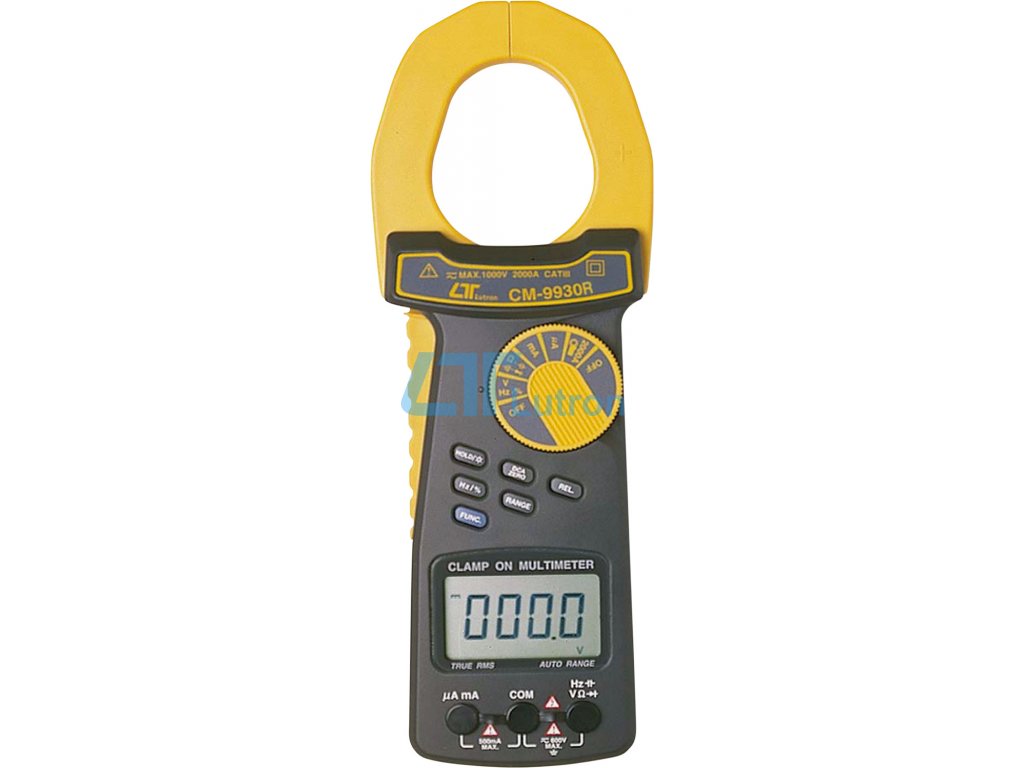

Clamp multimeter LUTRON CM-9930R

Not rated
€158 €130,58 excl. VAT
The Lutron CM-9930 is a digital clamp multimeter with communication interface. Lutron CM 9930...

Detailed information

Product detailed description

The Lutron CM-9930 is a digital clamp multimeter with communication interface. Lutron CM 9930 measures AC / DC current and voltage, resistance, duty cycle, capacity, frequency. Offers True RMS, diode and continuity test, Relative measurement, Data Hold, auto-off, battery voltage measurement, zero setting, overload protection on all ranges, splash protection. We offer a wide selection of customized adapters (humidity adapter, exposure meter, EMF adapter, pressure adapter, anemometer, temperature adapter, IR adapter, tachometer, high voltage probe). Max. diameter of measured conductor is 51mm. Complies with IEC 1010-1 / Cat III 1000V.

Ranges / resolution:
UAC / DC: 400 mV / 0.1 mV (DC only); 4 V / 0.001 V; 40 V / 0.01 V; 400 V / 0.1 V; 1000 V / 1 V
IAC / DC: (direct): 400 uA / 0.1 uA; 4000/1 uA; 40 / 0.01 mA; 400 mA / 0.1 mA
IAC / DC: (clamp): 400 A / 0.1 A; 2000 A / 1 A
R: 400 Ω / 0.1 Ω; 4 kΩ / 1 Ω; 40 kΩ / 10 Ω; 400 kΩ / 0.1 kΩ; 4 MΩ / 1 kΩ; 40 MΩ / 10 kΩ
F: 5 Hz / 0.001 Hz; 50 Hz / 0.01 Hz; 500 Hz / 0.1 Hz; 5 kHz / 1Hz; 50 kHz / 10 Hz; 100 kHz / 100 Hz
C: 50 nF / 10 pF; 500 nF / 100 pF; 5 uF / 0.001 uF; 50 uF / 0.01 uF

Other parameters:

RS232/USB PC COMPUTER interface.
Power supply: 9 V battery
Dimensions: 73 x 255 x 38 mm

Weight: 380 gN)).

Documents:

Additional parameters

Category: Clamp meters
Weight: 0.8 kg
